Auto DOF ( Scheimflug ) Manual Iris Lens2023-11-22 16:18:41
1.1" 12mm/16mm/25mm/35mm 20Megapixel Lenses Auto DOF ( Scheimflug ) Manual Iris Depth Of Field FA Machine Vision Industrial Camera Optical Imaging Low Distortion Positioning Measurement Inspection On Factory Automation AI Deep Learning C Mount China Optics
1. Unique design of Scheimpflug angle adjusting mechanism
2. Perfectly solved the DOF limitation ( see below image )
3. Support 1.1" camera
4. Resolution 20 Megapixel

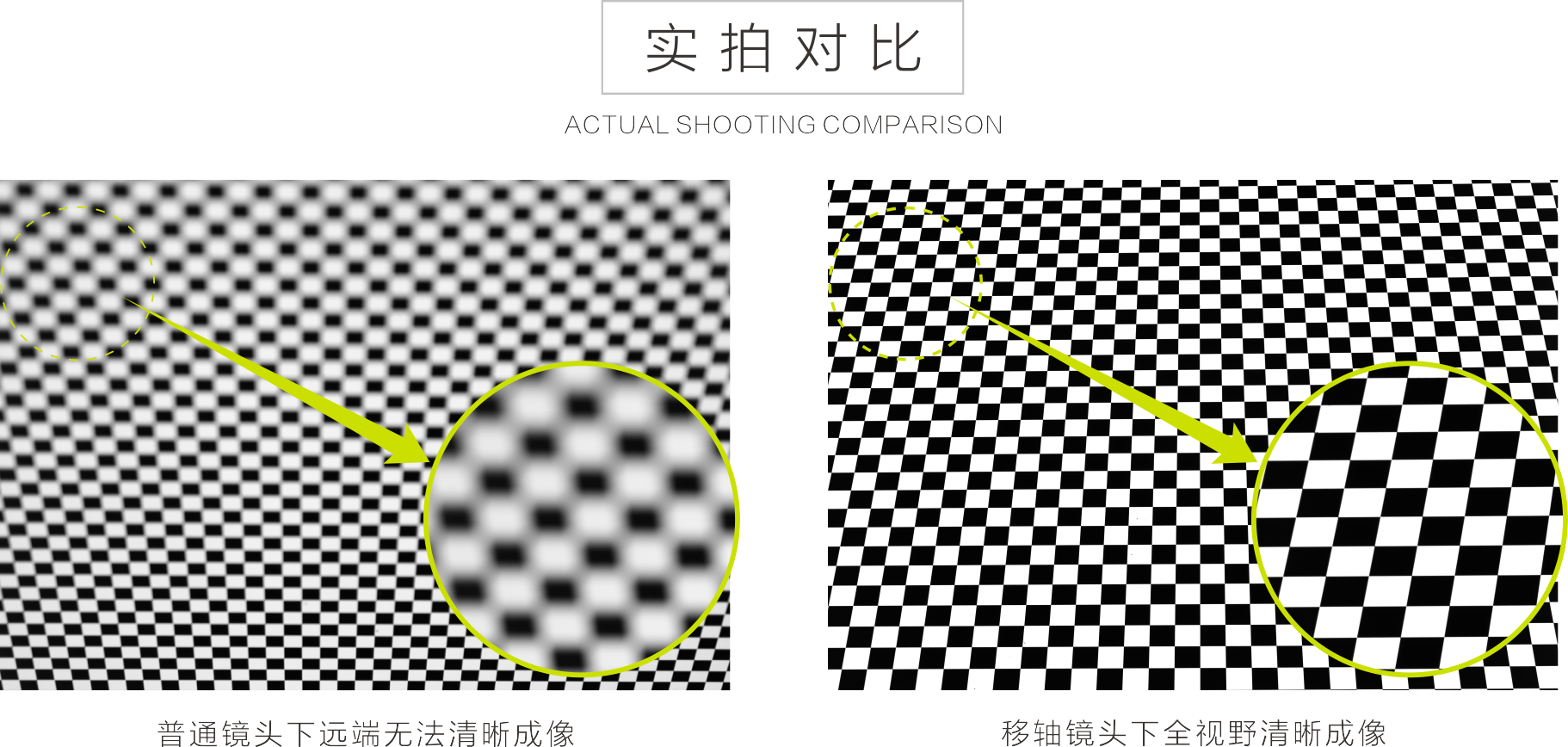

( DRAG THE PICTURE TO ENLARGE ↑↑↑ ) : LEFT SIDE " STANDARD " LENS | RIGHT SIDE " DOF AJUSTABLE " LENS
Download by click RED model below
| Model | EFL | Sensor | Aperture | TV Distortion | MOD | Mnt |
| SDOF1228-20M | 12mm | 1.1" | f2.8-22 | <0.5% | 0.1m | C |
| SDOF1628-20M | 16mm | 1.1" | f2.8-22 | <0.3% | 0.1m | C |
| SDOF2528-20M | 25mm | 1.1" | f2.8-22 | <0.1% | 0.2m | C |
| SDOF3528-20M | 35mm | 1.1" | f2.8-22 | <0.02% | 0.2m | C |
